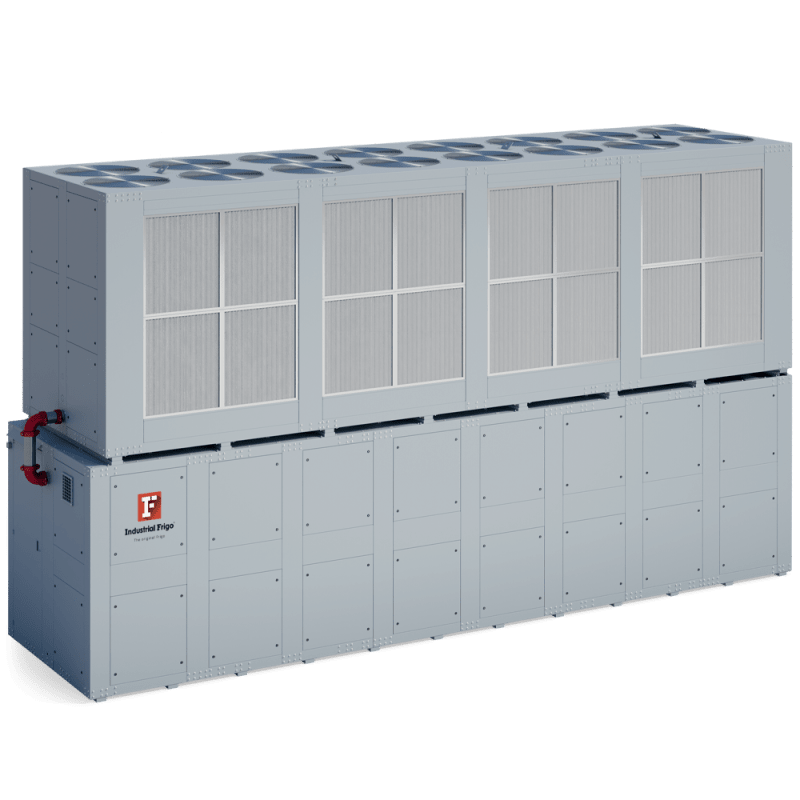

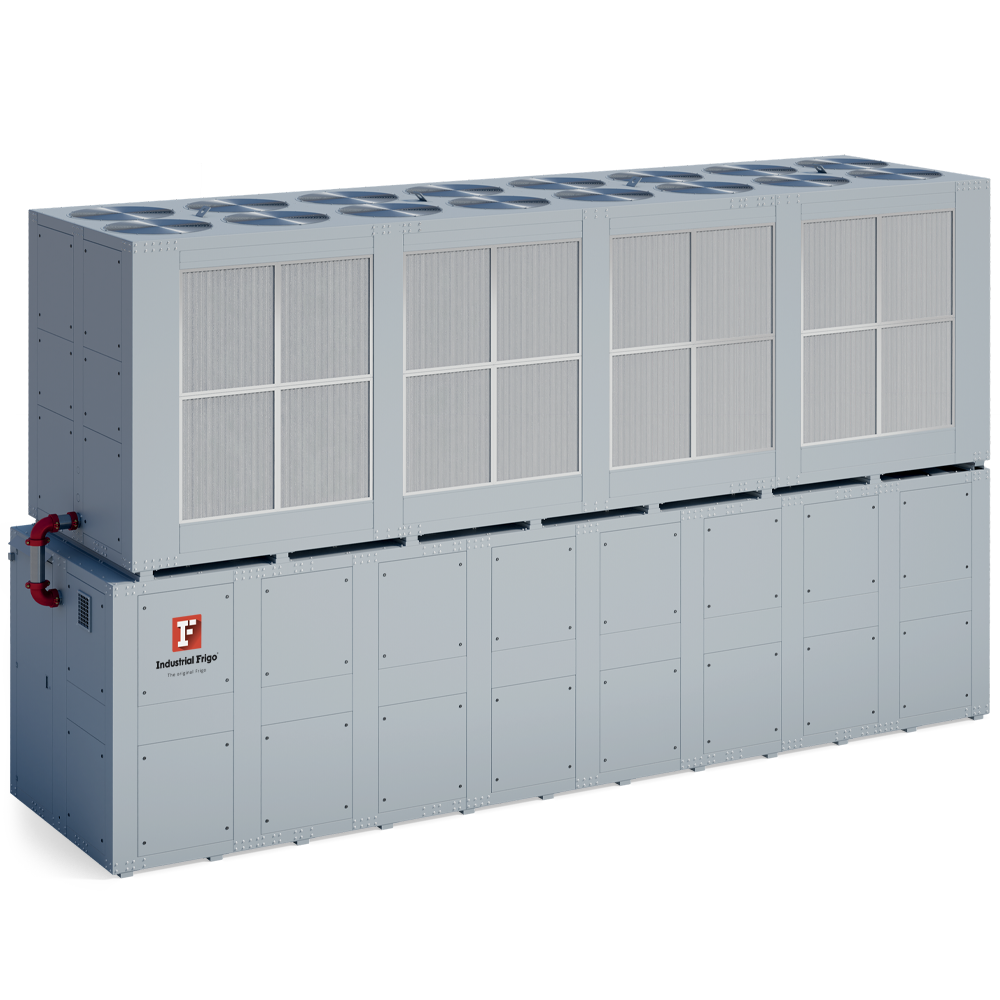

SIREG is a sophisticated process water cooling system operating at a single operating temperature, featuring a fully automatic built-in free cooling system. It can operate in low ambient temperatures with process water without the addition of glycol, thanks to a special safety system that prevents freezing during cold periods.

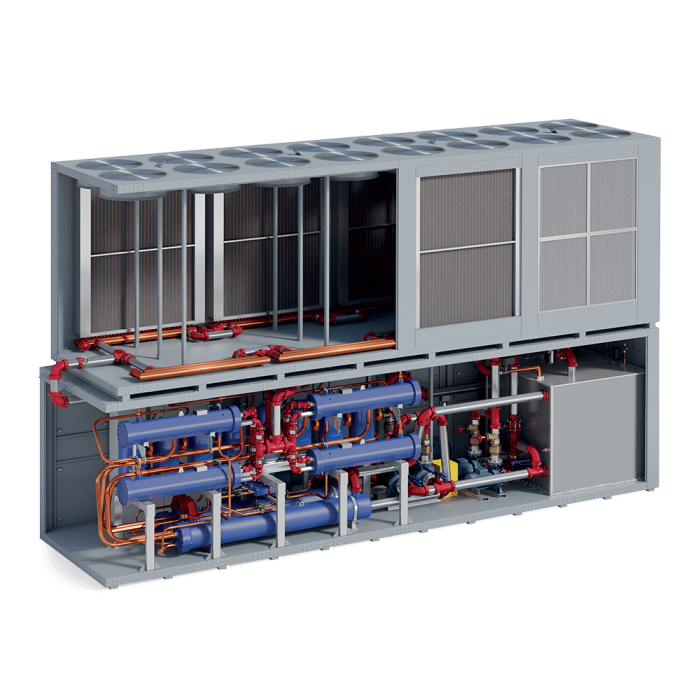

The SIREG is built by combining a chiller with a free-cooling system, which allows achieving high efficiency in the refrigeration cycle and, during cold/mild weather periods, producing chilled water with significant energy savings.
Chillers engineered with up to 4 independent refrigerant circuits to ensure maximum reliability and redundancy.
These compressors guarantee absolute operational reliability combined with outstanding energy efficiency levels.
A centrifugal electric pump designed to guarantee optimal fluid flow rate to all end-users with maximum energy efficiency.
High-efficiency cooling and low power consumption thanks to advanced EC axial fans combined with a high-performance finned coil.
Our chillers feature an intuitive, user-friendly PLC control system.
It maximizes energy savings in a completely automatic way.
Shell and tube evaporators and condensers characterized by maximum reliability and robustness.
Opening the drain valve discharges water into the tank, while the electric convector heater maintains an appropriate temperature in the tank and pump zone.
The presence of equalizing lines allows units of even different capacities to be connected in parallel.
Our chillers cover a wide range of sizes, allowing you to select the ideal cooling capacity for every specific industrial application and operating ambient temperature.
The parameters shown represent our standard range. For different thermal requirements or special configurations, our engineering department develops tailored solutions.
Cooling capacity from 105 to 840kW
105/840
Set-point temperature range from +8°C to +25°C
8/25
Ambient temperature range from -20°C to +48°C
-20/48
Cooling technologies designed to improve plastic product yield, increase production efficiency and reduce energy consumption.
Industrial refrigeration systems designed to maintain constant temperature in machining processes, ensuring precision, stability, and extended tool life.
Industrial refrigeration solutions designed for the food and winery industry, from process cooling to fermentation temperature control and storage.
Custom industrial refrigeration systems to ensure continuity, efficiency, and safety in complex industrial processes, from data centers to gas turbines and ORC plants.
A sophisticated process water cooling system operating at a single operating temperature, featuring built-in free cooling.
Every system begins with a technical assessment: we analyze process data to offer targeted and highly effective solutions.
We design customized industrial systems, integrating the best components to ensure long-term high performance.
We manufacture industrial chillers and complete systems, tailored to the production layout and environmental conditions of each installation.
Energy efficiency Eco-sustainable refrigeration High performance Advanced thermal control
